Quick Details

  • Condition: New
  • Place of Origin: Chongqing, China (Mainland)
  • Brand Name: Qiaoxing
  • Model Number: SZLH350
  • Type: Feed Pellet Machine
  • Voltage: Customer's Requirement
  • Power(W): 55kw
  • Dimension(L*W*H): 2250*1050*1100mm
  • Weight: 1700 kg
  • Certification: CE SGS
  • Warranty: One Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: 5T/H Pellet Maker Kit Pellet Maker Machine
  • Output: 2-8T/H
  • Final Feed Size: 1.2-12mm
  • Application: make chicken/poultry/cattle /pig etc feed
  • Color: Customer's Request
  • Raw material: Cereals Powder
  • Feeder power: 1.5kw
  • Conditioner power: 3kw
  • Motor: Siemens Beide brand motor
  • Bearing: SKF Bearing

Packaging & Delivery

Packaging Details plywood case packing
Delivery Time 25 working days after get deposit
Product Description

Our Factory

Our factory occupa 30000 square meters. among of 10000 square meters modernization workshop, 4000 square meters for office . the rest are for workers dormitory and for garden.

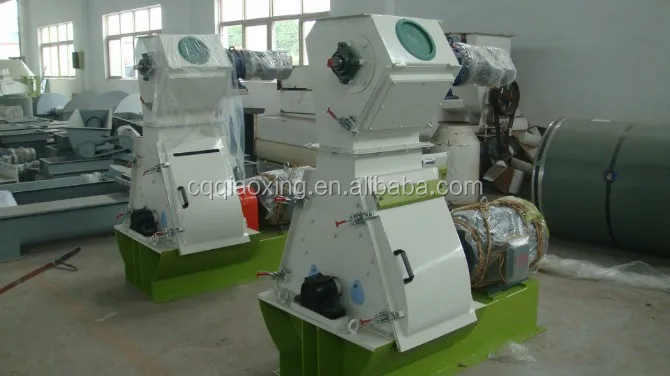

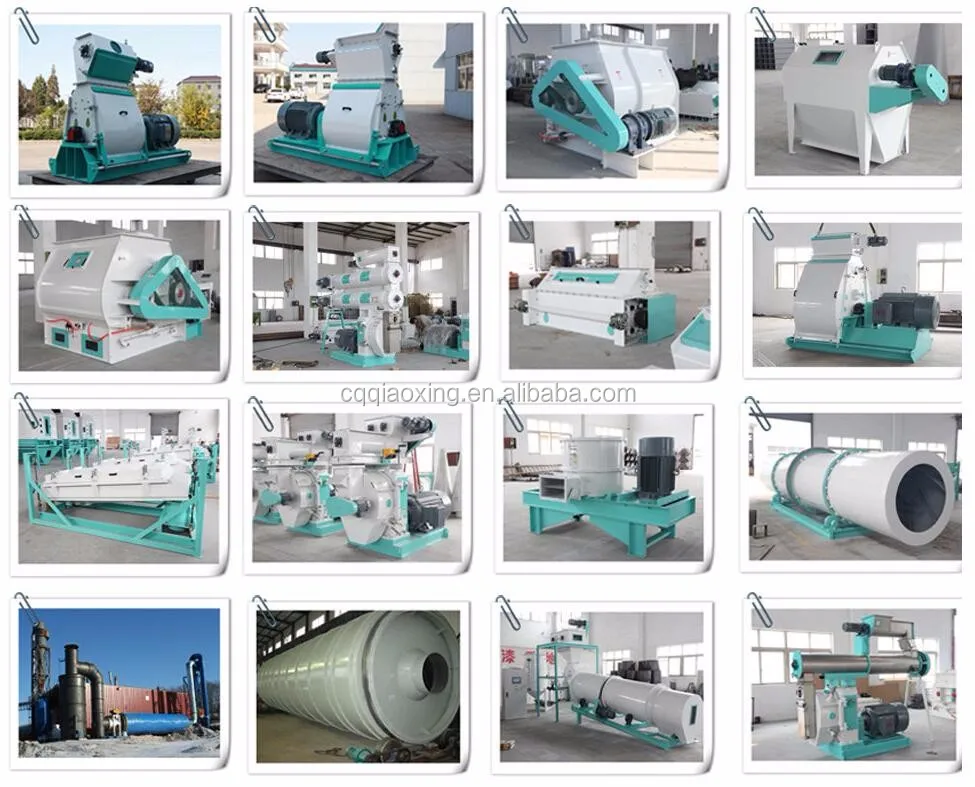

Finished Machines In Factory

this is our finished machines show room , our processing workshop and finished product workshop are by separately .

SZLH series 5T/H Pellet Maker Kit Pellet Maker Machine


1.This machine widely applied product with mature technology .
2.The main driving adopts high-precision gear drive, so that the output is improved by about 20% when compared with that of belt drive.
3.Imported high-quality bearing and oil seal are adopted to ensure efficient, stable and low-noise whole machine operation . the granulating room is equipped with air suction temperature reducing system .
4.The feeder adopts variable-frequency and variable-speed motor to ensure the quality of discharged particles .
5.Ring dies with multiple kinds of bore diameters are optional . and high-quality craft ring dies are adopted, so that the service life is long. The discharged particles are smooth and the quality is high .
6.International advanced compensation type snakelike spring coupling has the propertied of novel and compact structure, high safety, low noise and low fault rate.
7.Plus-size conditioner and jacket type conditioner are selectable to strength the particle conditioning effect.


Product technical parameters :

SZLH32
SZLH35
SZLH40
SZLH42
SZLH
508
SZLH
558
SZLH678
SZLH
768
1
Capacity
2-5T/H
2-8T/H
2-10T/H
3-12T/H
4-20T/H
6-22T/H
10-30T/H
12-35T/H
2
Main power
37kw
55kw
75/
90kw
110kw
132/
160kw
160/180/200kw
220/
250kw
280/
315kw
3
Power of feeder
0.55kw
1.5kw
1.5kw
1.5kw
1.5kw
2.2kw
2.2kw
2.2kw
4
Power of conditioner
2.2kw
3kw
3kw
5.5kw
7.5kw
7.5kw
11kw
15kw
5
Inner diameter of die
320mm
350mm
400mm
420mm
508mm
558mm
678mm
768mm
6
Die speed
305RPM
336RPM
307RPM
287RPM
287RPM
287RPM
287RPM
287RPM
7
Feeder speed
12-120RPM
8
Conditioner speed
350RPM
9
Pellets size
Diameter 2,3,4,4.5,5,6,8,10mm
10
Rollers number
2 pcs
11
Roller OD
140mm
165mm
190mm
206mm
222mm
240mm
256mm
280mm
12
Pellets rate of briquette
≥95%
13
Percentage of powdered pellets
≤12%
14
Stability of pellets in the water
≥20 MIN
15
Noise
≤86dB(A)
≤90dB(A)
16
Die working temperature
≤85℃
17
Steam working pressure
0.1-0.4Mpa
18
Steam consumption
≥0.3t/h
≥0.3t/h
≥0.4t/h
≥0.5t/h
≥1t/h
≥1t/h
≥1.5t/h
≥1.5t/h
19
Steam temperature
130-150℃
Detailed Images

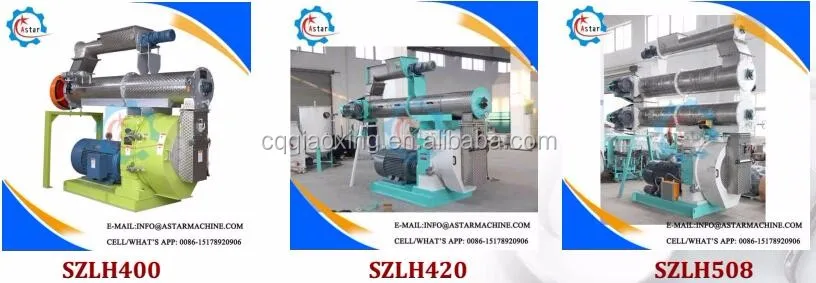

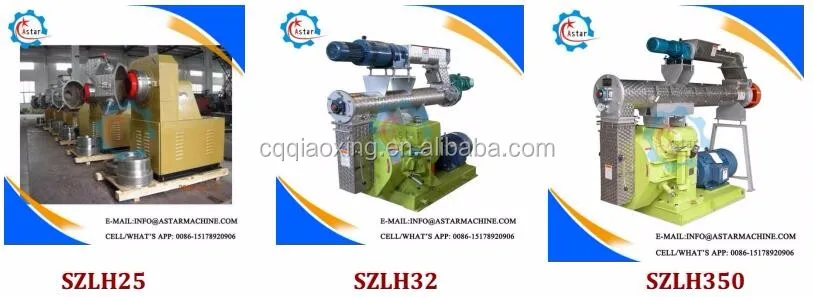

SZLH series 5T/H Pellet Maker Kit Pellet Maker Machine photos

5T/H Pellet Maker Kit Pellet Maker Machine Photos

Packing & Delivery

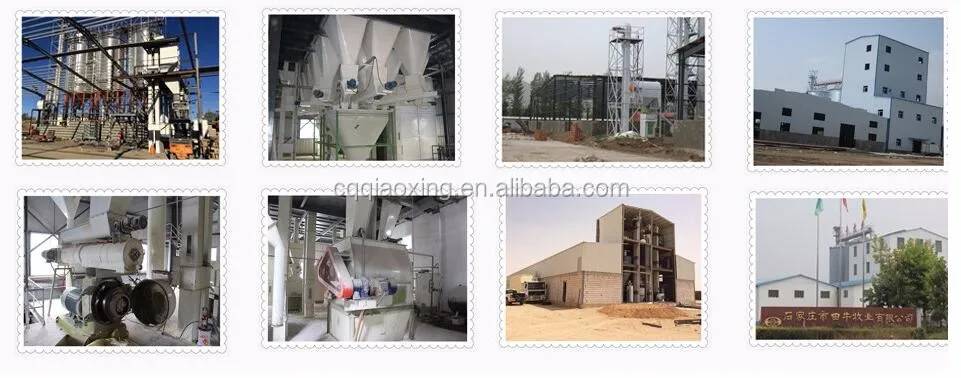

Customer 5T/H Pellet Maker Kit Pellet Maker Machine Factory

we have many sucessfully plant in all over the world , capacity range from 1ton till 20ton per hour . any more inquiry or questions, please contact me in below address :
